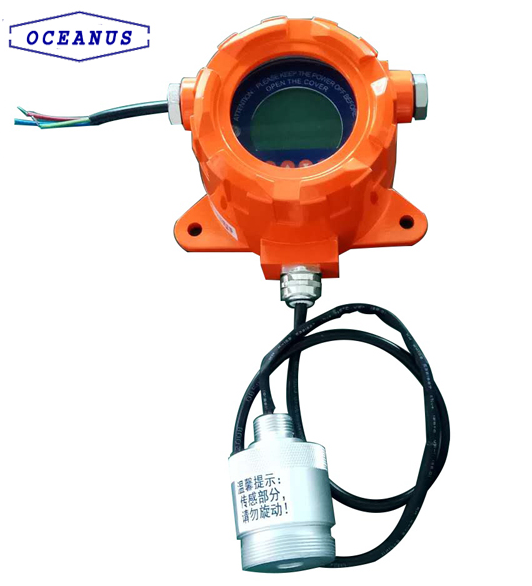

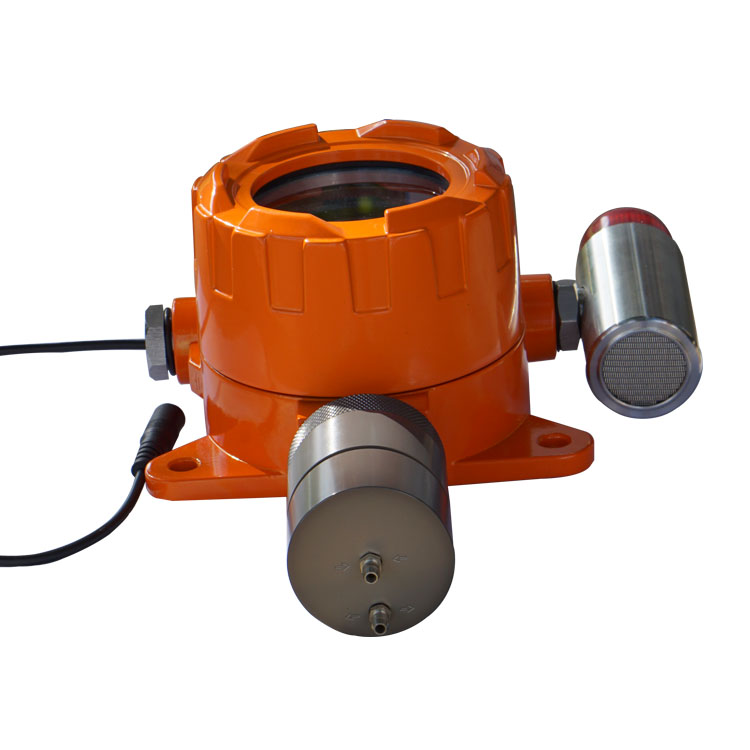

OC-F08 online Hydrogen H2 gas detector with the microcontroller technology and imported sensor, high accuracy, good stability and respond quickly. Avaible for different detection system, PLC, DCS, computer, mobile phone, etc.

1.       Gas type: Hydrogen (H2)

2.       Measuring range: 0~100ppm, 0~500pm, 0~1000ppm, 0~5000ppm, 0~40000ppm, 0~50000ppm, 0~10%vol, or customized.

3.       Resolution: 0.1ppm(0~1000ppm), 1ppm(above 1000ppm), 0.01%vol(0~10%vol)

4.       Precision: ≤±3% F.S

5.       Repeatability: ≤±1%

6.       Zero drift: ≤±1% (F.S/year)

7.       Response time: ≤20s(T90)

8.       Singal output: 4~20mA singal output, RS485 digital singal output, also the relay output

9.       Optional data logger function and remote control.

10.   With audible-visual alarm light.

11.   Explosion-proof Grade: Exd II CT6

12.   Protection grade: IP65

13.   Working voltage: 24VDC (12~30VDC)

14.   Working temperature: -20～50℃, special working place could be customized.

15.   Working Humidity: ≤95%RH(non-condensing), if more than 90%, could equip the filter

16.   Working pressure: ≤200Kpa

17.   Size: 170*140*80mm

18.   Weight: 1.5kg

We also produce the matched gas control system, if you want more details, welcome to contact us.
